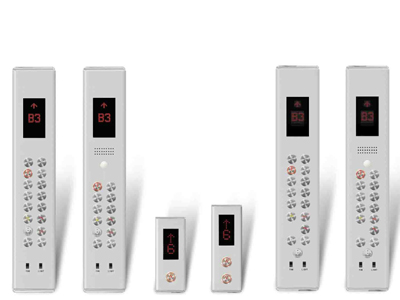

LOP & COP
Features
- Simple structure, easy installtion , innovative & neat appearance , Different lettering available.
- Compfortable touch-fell , available illumination
Colors
- Red,Orange, Green, Blue,Blue,White.

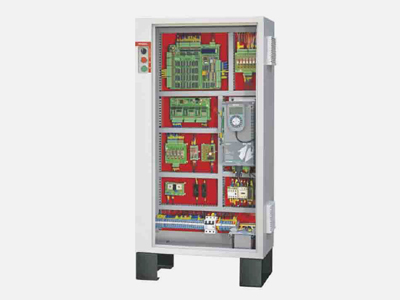

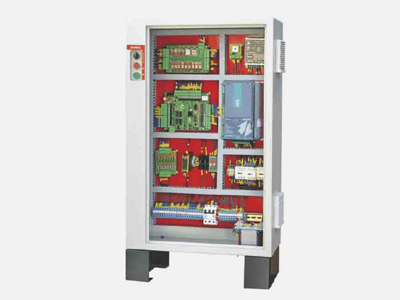

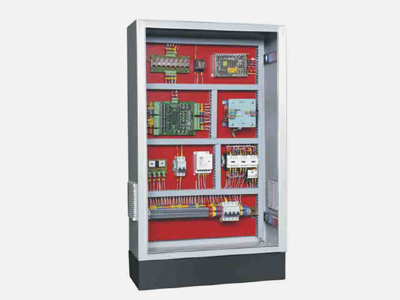

Controller
Features
No of Stop:
- Upto 48 stop Auto Door down Collective.
- Upto 32 stop Fully Collective Selective Auto Door.
Operations
- Universal
- Simplex down
- Simplex full
- Duplex Full
- Duplex down
Drives
- Regular V3F, Down Collective V3F and Collective Selective V3F. Also suitable for Auto Door, Double Door(Two side Opening)
Speed
- Upto 2 m/sec.
- All system parameters can be adjusted by using 4 buttons and two seven segment placed on the card.
- Call Register LED and call push Button are on single wire on board Seven Segment Display.
- All the Input and Output are Opto-isolated and available in both 12VDC and 24VDc.
- All the Input and Output are carrying LED indication on board.
- An error code are display on segment as well as it is memories in the card.
- All the Input and Output are carrying LED indication on board.
- Each floor can be named by alphanumeric character(L,P,E,F,H,o,0,1,2,3….), 7-segment and signalization outputs are short-circuiting protected. In a short circuit case the concerned output is shutdown until problem is removed.
- It also detect the landing lock short at particular floor.
- Power down memmory, in case of power fail it will reach at nearest floor instead of going to correction end.
- only 15 cables are memory are enough for system to work by using serial car connection (AD009_Ext) Which reduces labor and cable costs.

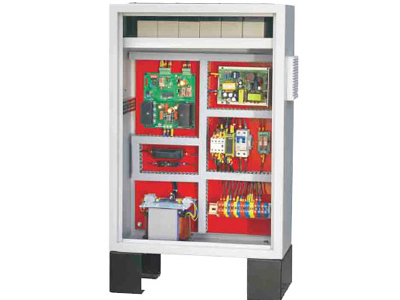

ARD
Features
- In case of a man power supply failure, the lift stopped between two floors is moved to floor level, the automatic door is opened and passengers are out safely. For lifts with automatics door, in case of a main power supply failure at floor level,the door is remain opened.
Use
- This device is suitable for those building without an emergency power source Allocated for elevator.

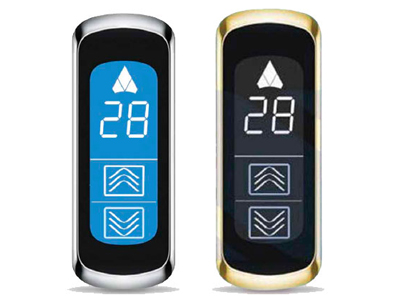

Touch Series LOP
- Touch Screen with LCD Surface Mounted design with plexiglass panel and Zinc Alloy Out Frame.

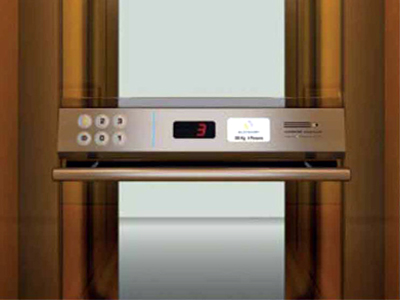

Touch Series COP

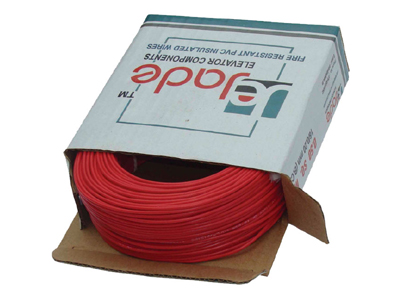

Electrical Cable 1

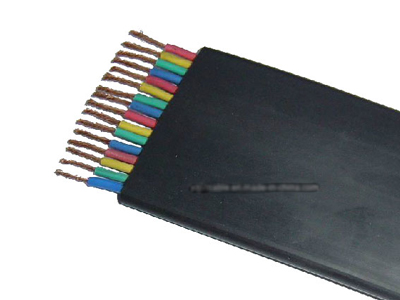

Electrical Cable 2

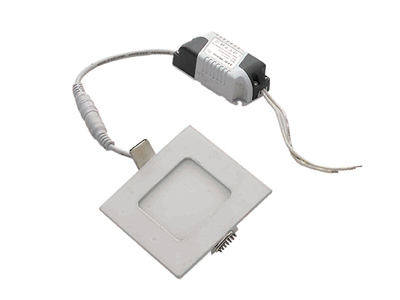

LED

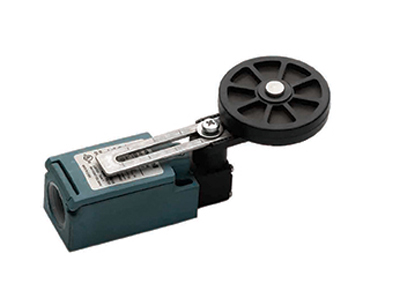

Limit Switch
